SqAiryShape
Product configurator
a|SqAiryShape

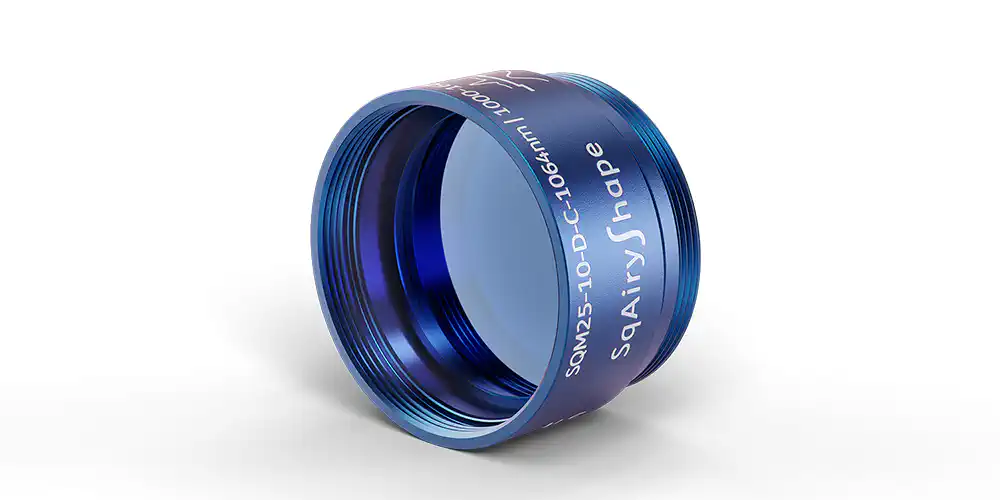

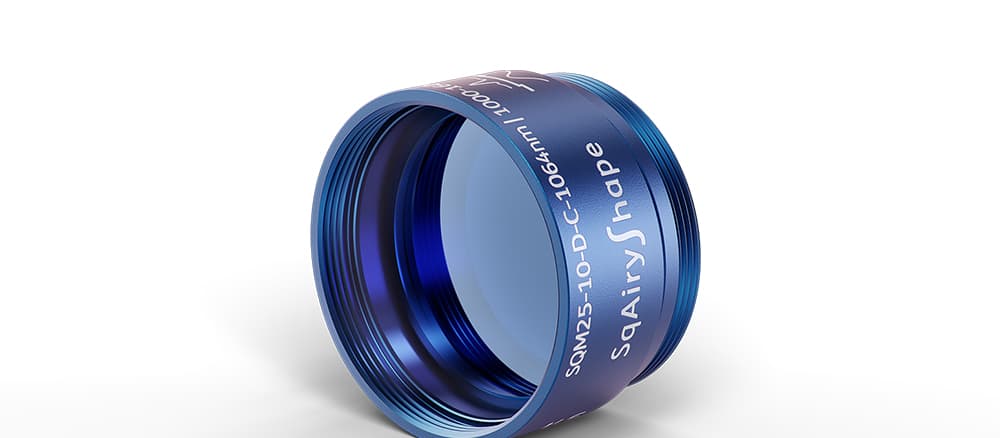

Want to generate focused squared beam profiles, like Top-Hat or Donut? No problem with the a|SqAiryShape! Optimized for wavelengths from 300 - 1600nm, this beam shaper enables, in combination with a focusing lens, the transformation of collimated Gaussian beams into different focused squared beam profiles. Thanks to its compact design, the beam shaping element can be easily integrated into existing set-ups.
- Profile size easily scalable by focal length
- Perfect alignment by high-precision mounting
- Input beam diameter @ 1/e2 = 10mm; output beam diameter dAiry = 10mm
- Laser induced damage threshold: 12J/cm², 100Hz, 6ns, 532nm
λDesign [nm]Wavelength range [nm]
| Product Code | Thread [mm] | Outer Diameter Mount [mm] | Length [mm] | Input beam diameter @1/e² [mm] | Output beam diameter dAiry | λDesign [nm] | Wavelength range [nm] | Price | |
|---|---|---|---|---|---|---|---|---|---|
| SQM25-10-D-Y-355 | M28x0.75 | 30 | 17.3 | 10 | 10 | 355 | 320-450 | 3219.00 | Citace |
| SQM25-10-D-A-532 | M28x0.75 | 30 | 17.3 | 10 | 10 | 532 | 500-620 | 3167.00 | Citace |
| SQM25-10-D-B-632 | M28x0.75 | 30 | 17.3 | 10 | 10 | 632 | 600-760 | 3115.00 | Citace |
| SQM25-10-D-B-780 | M28x0.75 | 30 | 17.3 | 10 | 10 | 780 | 700-1050 | 3011.00 | Citace |
| SQM25-10-D-C-1064 | M28x0.75 | 30 | 17.3 | 10 | 10 | 1064 | 1000-1500 | 3063.00 | Citace |
Data sheets & downloads
📎 BeamTuning Brochure
📎 Data sheet SqAiryShape
