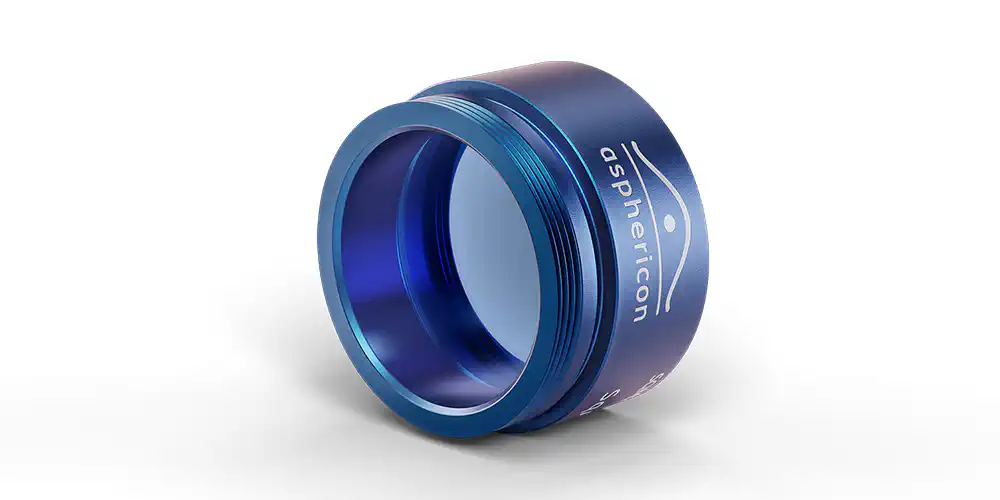

a|AiryShape
Want to generate focused round beam profiles, like Top-Hat or Donut? No problem with a|AiryShape! Optimized for wavelengths from 300 – 1600 nm, this beam shaper enables, in combination with a focusing lens, the transformation of collimated Gaussian beams into different focused round beam profiles. Thanks to its compact design, the beam shaping element can be easily integrated into existing set-ups.
- Profile size easily scalable by focal length
- Perfect alignment by high-precision mounting
- Input beam diameter @ 1/e2 = 10mm; output beam diameter dAiry = 10mm
- Laser induced damage threshold: 12J/cm², 100Hz, 6ns, 532nm
λDesign [nm]Wavelength range [nm]
| Product Code | Thread [mm] | Outer Diameter Mount [mm] | Length [mm] | Input beam diameter @1/e² [mm] | Output beam diameter dAiry | λDesign [nm] | Wavelength range [nm] | Price | |
|---|---|---|---|---|---|---|---|---|---|
| ASM25-10-D-Y-355 | M28x0.75 | 30 | 17.3 | 10 | 10 | 355 | 320-450 | 1788.00 | 报价 |
| ASM25-10-D-A-532 | M28x0.75 | 30 | 17.3 | 10 | 10 | 532 | 500-620 | 1759.00 | 报价 |
| ASM25-10-D-B-632 | M28x0.75 | 30 | 17.3 | 10 | 10 | 632 | 600-760 | 1730.00 | 报价 |
| ASM25-10-D-B-780 | M28x0.75 | 30 | 17.3 | 10 | 10 | 780 | 700-1050 | 1673.00 | 报价 |
| ASM25-10-D-C-1064 | M28x0.75 | 30 | 17.3 | 10 | 10 | 1064 | 1000-1500 | 1702.00 | 报价 |
Data sheets & downloads
📎 BeamTuning Brochure
📎 Data sheets AiryShape
