a|Acylinder

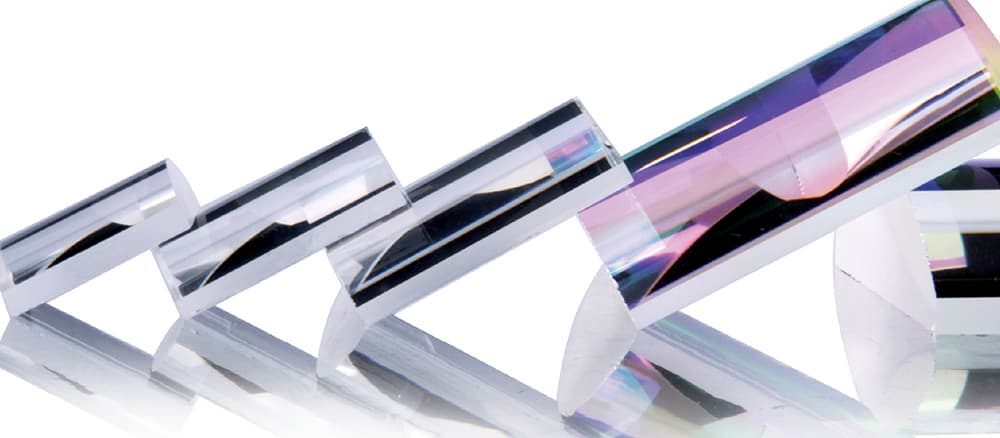

Benefit from our attractive selection of aspheric cylinders with a RMSi surface form deviation smaller than 0.5 µm. a|Acylinders are made from high-index-glass and can be especially used for laser applications.

a|Acylinders at a glance:

Outstanding surface form deviation of RMSi ≤ 0.5 µm
Ideal line-focus without spherical aberration
Available with 3 standard coatings/customized coatings on request
Off-the-shelf delivery for short lead times
RoHS compliance

RMSi [nm]Size [mm]EFL [mm]NAMaterialCoating

Product Code	RMSi [nm]	Edge Thickness [mm]	Size [mm]	EFL [mm]	NA	f/d	WD [mm]	λDesign [nm]	Material	Coating	Price uncoated	Price coated
CHL10-08-P-U	500	0.9	10x10	8	0.54	0.8	6.3	780	S-LAH64	A / B / C	345.00	402.00	报价
CHL12-10-P-U	500	2.3	12.5x12.5	10	0.55	0.8	7.2	780	S-LAH64	A / B / C	403.00	459.00	报价
CHL15-12-P-U	500	1.8	15x15	12	0.54	0.8	9.2	780	S-LAH64	A / B / C	431.00	491.00	报价
CHL18-15-P-U	500	2.3	18x18	15	0.53	0.83	11.6	780	S-LAH64	A / B / C	461.00	542.00	报价
CHL20-18-P-U	500	2.8	20x20	18	0.49	0.9	14.3	780	S-LAH64	A / B / C	489.00	570.00	报价
CHL25-20-P-U	500	2.2	25x25	20	0.54	0.8	15.8	780	S-LAH64	A / B / C	519.00	600.00	报价
CHL30-26-P-U	500	2.2	30x30	26	0.52	0.87	21.5	780	S-LAH64	A / B / C	663.00	780.00	报价
CHL45-32-P-U	500	2.1	45x45	32	0.61	0.71	24.7	780	S-LAH64	A / B / C	867.00	1129.00	报价
CHL50-40-P-U	500	3.4	50x50	40	0.55	0.8	32.1	780	S-LAH64	A / B / C	925.00	1186.00	报价

Prices are valid per piece and in USD. Sales only to commercial customers. All prices are exclusive of VAT.

Coating options*

AR-Coatings
A: R_MAX <1.0%, R_AVG ≤0.4%, 400-600 nm, AOI=0°
B: R_MAX <1.0%, R_AVG ≤0.4%, 600-1050 nm, AOI=0°
C: R_MAX <1.0%, R_AVG ≤0.4%, 1000-1500 nm, AOI=0°

* Custom coatings available upon request.

Data sheets & downloads

📎 StockOptics Catalog Europe
📎 StockOptics Catalog North America
📎 Data sheet Acylinder
📎 Design-Files Acylinder
📎 Coating curves Acylinder
